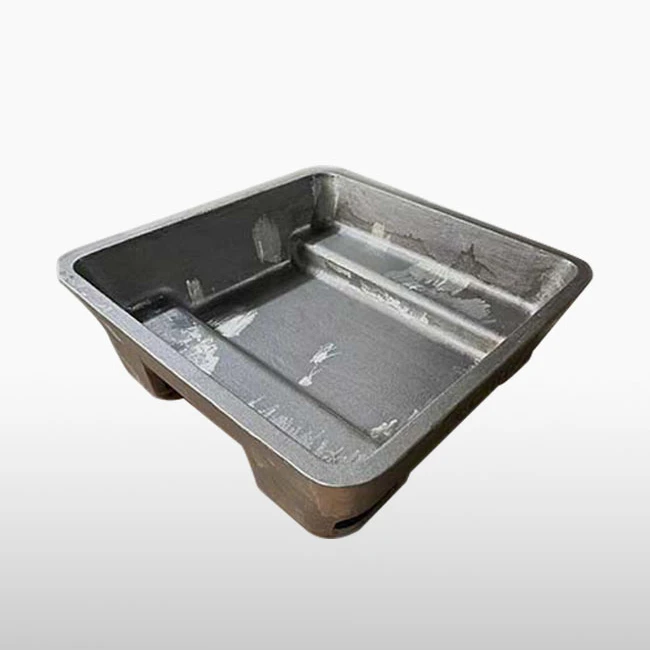

Aluminium Sow Moulds

Peb tsim muaj zog thiab ruaj khov moulds, ingot pwm, ntws sow, aluminium sow, skimming cov cuab yeej.
Peb tau siv ntau xyoo los tsim peb cov khoom siv los tiv thaiv kev kub ntxhov cam khwb cia hlau rau cov khoom siv uas zoo dua thiab siv tau ntev dua li cov khoom siv niaj hnub hauv kev ua lag luam.
Peb ua tau raws li peb cov neeg siv khoom qhov kev cia siab los ntawm kev txuag nyiaj ntau ntawm kev ua haujlwm rau lawv.
Ntxiv rau peb cov khoom tsim, peb kuj muab cov khoom no rau hauv cov khoom siv hlau thiab hlau ntawm cov neeg siv khoom xaiv.
◆ Xian Huan-Tai tus tsim thiab HT tus tswv hlau alloys
◆ Muab rab diav rawg hnab ris tag nrho
◆ Cam khwb cia ko taw/lugs kom yooj yim ntawm kev tuav cov khoom
◆ Lub neej ntev ntawm cov khoom siv
◆ Kev qhuas zoo heev tom qab siv peb cov castings-Sow pwm, aluminium sow, ingot pwm, ntws sow, skimming cov cuab yeej

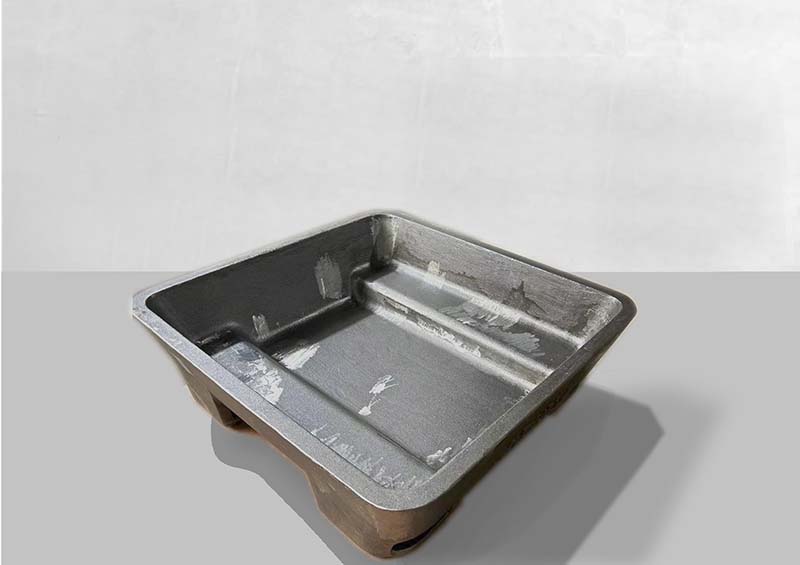

Aluminium sow pwm

Peb tsimaluminium sow pwmnrog rau ntau yam ntawm tus qauv qis-profile thiab high-profile, thiab nrog los yog tsis muaj rab rawg hnab ris raws li nyob rau hauv cov lus hauv qab no. Peb sow pwm yog casting los ntawm ib tug proprietary khoom, cov khoom yog tsim los ntawm peb tus kheej kom muab zoo heev durability.

Ntxiv rau peb cov khoom tsim, peb kuj muab lwm cov pwm steel pwm thiab cov pwm hlau, cov khoom yuav yog ASTM A27 Gr 70-40, ASTM A148 Gr 105-85, AISI 8630, GGG{ {5}}, GGG-50, thiab lwm yam ntaub ntawv uas cov neeg siv khoom xav tau, tiv tauj peb txhawm rau nrhiav kev daws teeb meem zoo tshaj plaws rau koj lub tuam txhab.

kawm ntxiv

Kev piav qhia ntawm aluminium sow pwm

Khoom siv:HT anti-thermal shock proprietary khoom rau casthouse consumables

Daim ntawv thov:Aluminium recycling, Aluminium smelters, Hlau Recycling nroj tsuag, non-ferrous hlau recycling nroj tsuag, Aluminium bar producers, Primary Aluminium producers, Secondary Aluminium producers, Aluminium refineries thiab lwm yam.

Specification

product-865-369

	Sab nraud pwm qhov ntev hauv millimeters			Sab hauv pwm qhov ntev hauv millimeter			Kwv yees li. Qhov hnyav (lbs)
	Dav	Ntev	Qhov siab	Dav	Ntev	Qhov siab	Kwv yees li. Qhov hnyav (lbs)
1200lb low profile	1130	1485	290	1048	1378	239	1800
1200lb low profile w / diav rawg hnab ris	1130	1485	308	1048	1378	239	2000
1200lb siab profile	1016	1016	462	915	915	411	1630
1200lb high profile w / diav rawg hnab ris	1016	1016	475	915	915	411	1750
1500lb siab profile	1229	1411	349	1129	1310	299	2100
1500lb high profile w / diav rawg hnab ris	1229	1411	374	1129	1310	299	2400
2000lb siab profile	1254	1445	403	1152	1340	353	2400
2000lb high profile w / diav rawg hnab ris	1254	1445	429	1152	1340	353	2595
