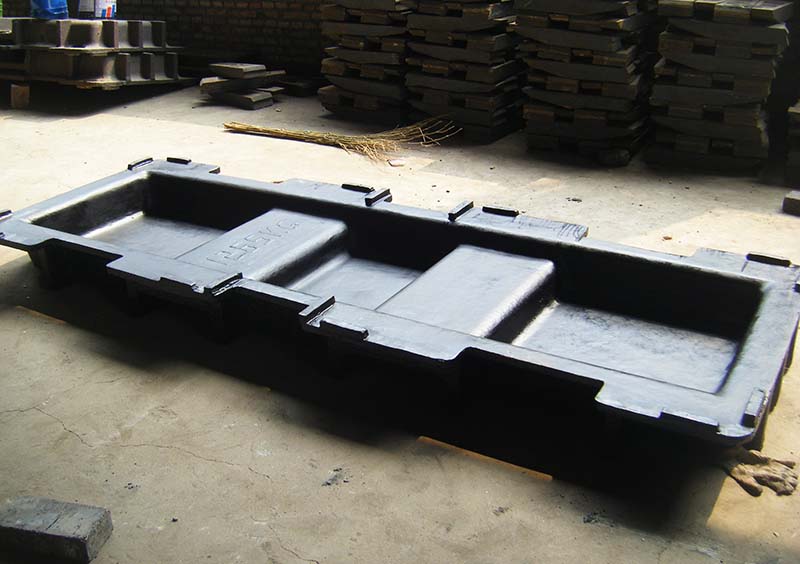

Yuav Ua Li Cas Optimize Ntau Lawm Nrog Ntau Chamber Sow Pwm Tsim?

◆ Dab tsi yog qhov tseem ceeb tsim kev txiav txim siab rau Multi-chamber Sow Pwm?

Cov theem tsim yog qhov tseem ceeb rau kev tsim kom muaj txiaj ntsig zoosow pwm nrog multi-chamber. Cov yam tseem ceeb muaj xws li:

1. Tus naj npawb thiab kev teeb tsa ntawm cov kab noj hniav kom sib npaug ntawm cov khoom lag luam nce thiab qhov nyuaj

2. Standardizing kab noj hniav kom zoo ib yam yog ua tau

3. Optimized feeder thiab gating designs kom ntseeg tau tias cov hlau tsis sib xws

4. Muaj cov vents txaus thiab porosity rau venting gases los ntawm tag nrho cov chav

5. Cov txheej txheem rigidity tiv taus siab dua cov dej ntws

6. Kev suav nyiaj rau kev nce shrinkage hom los ntawm ntau qhov chaw kub

7. Ib qho yooj yim parting kab rau huv demolding ntawm ntau yam castings

8. Draft cov ces kaum los txhim kho cov qauv tshem tawm thiab txo cov xuab zeb tsis xws luag

9. Simulation qauv los kwv yees sau thiab solidification qauv

Tau txais qhov layout, feeders, vents, thiab rigidity txoj cai nyob rau hauv tus tsim tiv thaiv tsis xws luag thiab zoo teeb meem. Cov cuab yeej simulation pab cov qauv tsim zoo meej.

◆ Cov txheej txheem tswj hwm dab tsi yog qhov tseem ceeb rau Multi-Chamber sow Pwm?

Cov txheej txheem nruj me ntsis yuav tsum tau siv los ua kom muaj zogsow pwm nrog ntau chav:

1.Clos xyuas thiab tswj cov hlau chemistry, qhov kub thiab txias, thiab cov nqi nchuav

2.Standardized pwm ntxuav cov txheej txheem los kho txhua qhov kab noj hniav

3.Tight tswj pwm ua cov kauj ruam zoo li cov xuab zeb zoo, ramming, thiab txias

4.Kev tiv thaiv tus qauv hnav los ntawm kev saib xyuas nruj

5.Txoj kev ua kom txias thiab qhov ntsuas kub tsawg ntawm cov kab noj hniav

6.Coordinated extraction ntawm castings tsis muaj pwm distortion

7.Automating txheej txheem rau kev sib xws ntawm cov ntim siab

8.Robust zoo tswj ntawm tag nrho cov kab noj hniav ua ntej tsiv mus rau qhov kawg

Kev ceev faj yuav tsum tau ua hauv kev tswj xyuas kom txo qis qhov sib txawv ntawm cov kab noj hniav hauv tib lub pwm.

◆ Yuav Ua Li Cas Ntau Chav Chamber Cov Qauv thiab Cov Cuab Yeej Yuav Tsim?

Thaum npaj tsim thiab cuab yeej rausow pwm nrog ntau chav, muaj ob peb qhov sib txawv tseem ceeb los txiav txim siab ua kom tiav qhov kev nthuav qhia zoo tshaj plaws thiab kev sib raug zoo thoob plaws txhua qhov. Nov yog qee qhov ntxiv subtleties ntawm txhua qhov teeb meem hauv nruab nrab hais txog yav dhau los:

1. Muaj zog, muaj tseeb ace piv txwv rau repeatability:Tus kws tshaj lij piv txwv yog qhov tsim los ua ntau qhov pits, yog li kev ua kom lub xeev siab phem ntawm kev siv rov ua dua yam tsis muaj kev cuam tshuam cov txheej txheej raug yuav tsum muaj peev xwm. Kev siv cov ntaub ntawv zoo heev thiab raug machining yog qhov yooj yim kom ua tiav qhov no.

2. Cov piv txwv piv txwv thiab embeds:Los ntawm kev npaj tsim qhov chaw thiab embeds uas tuaj yeem hloov pauv tau yooj yim, cov neeg tsim khoom tuaj yeem nthuav dav kev yoog raws thiab kev txawj ntse hauv ntau qhov kev nyuaj siab. Qhov no kuj ua rau kev tu, kho, thiab kev kho kom yooj yim dua thaum tseem ceeb.

3. Kev tsim qauv zoo sib xws ntawm kev nyuaj siab thaum twg qhov xwm txheej tso cai:Normalizing txoj kev npaj thiab qhov sib txawv ntawm qhov tuaj yeem txwv ntau yam thiab ua haujlwm ntawm qhov zoo sib xws ntawm txhua qhov chaw tsim los ntawm cov duab. Qhov no suav nrog cov ntsiab lus tseem ceeb, piv txwv li, rooj vag thiab feeder moj khaum, nrog rau cov ntsiab lus sau tseg, cov ntaub ntawv, thiab nruj.

4. Draft cov ntsiab lus, filets, thiab nruj kom ntxiv dag zog ntxiv:Cov phiaj xwm no tseem ceeb ua haujlwm nrog cov kwj dej thaum lub sijhawm ua haujlwm, tiv thaiv kev tsis zoo xws li shrinkage lossis tsis ua tiav. Lawv kuj ua rau nws yooj yim dua los tshem tawm qhov ua tiav ntawm daim ntawv yam tsis muaj kev phom sij.

5. Simple splitting kab rau forestall xuab zeb incorporations:Ib txoj kab sib cais tsis sib haum xeeb ntawm qhov hloov pauv thiab rub yog qhov tseem ceeb rau kev txwv cov xuab zeb sib xyaw thiab ua kom cov txheej txheej txheej tiav ntawm qhov ua tiav zoo meej thiab du.

6. Inherent feeder thiab gating qhov chaw:Feeder thiab gating qhov chaw muab tso rau hauv cov duab teeb tsa tuaj yeem ua kom cov kwj dej ntws zoo thaum lub sijhawm ua haujlwm, ntxiv txhim kho kev hwm, thiab txo qis kev twv txiaj ntawm deformities xws li porosity lossis sprinters.

7. Kev kho kom haum thiab tau txais kev yoog raws thiab luag:Kev tsim nyog thiab kev txhawb nqa ntawm kev hloov pauv thiab rub yog qhov ceev ceev kom ua raws li qhov kev ntseeg siab tau zoo thaum lub sijhawm ua haujlwm. Cov carafes zoo heev, cinches, thiab cov cuab yeej kev npaj pab nrog lav tias txhua qhov kev nyuaj siab yog qhov tseeb thiab tuav tau.

8. Lub tes tsho hauv cov khaub ncaws hnav kom zoo ntxiv rau kev txhim kho lub neej:Los ntawm kev sib koom ua ke lub tes tsho hloov pauv hauv thaj chaw ntawm kev hnav siab, cov neeg tsim khoom tuaj yeem nthuav dav cov cuab yeej siv lub neej thiab txo cov khoom tsim nyog. Cov tes tsho no mus txog raws li kev sib haum xeeb hnav qhov chaw uas tiv thaiv thaj tsam hauv paus ntawm cov duab los ntawm kev hnav hnyav thiab raug mob.

9. Cov tswv yim tsim kev tshawb nrhiav, kho, thiab muaj peev xwm:Cov tswv yim meej rau kev tshuaj xyuas, kho, thiab tso tawm cov piv txwv thiab cov cuab yeej yog qhov tseem ceeb rau kev ua raws li kev ua tiav ntev thiab sib xws. Kev ntsuam xyuas thiab kev saib xyuas ib txwm tuaj yeem pab paub qhov txawv thiab daws teeb meem ua ntej lawv ua rau lub sijhawm tus kheej lossis teeb meem zoo.

Hauv cov ntsiab lus, kev txhim kho cov qauv tsim thiab cov cuab yeej yog qhov yooj yim rau kev ua tiav cov caliber sab saum toj, cov txiaj ntsig tsis tu ncua hauv cov khoom. Los ntawm kev lees txais cov txheej txheem dav dav uas sib koom ua ke cov phiaj xwm tseem ceeb no, cov neeg tsim khoom tuaj yeem nthuav tawm cov khoom lag luam, txwv tsis pub muaj qhov tsis zoo, thiab tsim cov khoom zoo.

Xaus

Thaum xav txog engineered,sow pwm nrog ntau chavpab kom loj ntau lawm efficiency. Txawm li cas los xij, cov qauv tsim yuav tsum sib npaug ntawm cov khoom lag luam nce ntxiv tiv thaiv qhov nyuaj ntxiv. Nrog rau cov cuab yeej simulation thiab cov txheej txheem nruj, cov chaw tsim khoom tuaj yeem txhim kho cov pwm no kom ua tiav cov txiaj ntsig zoo ntawm cov khoom zoo. Qhov tseem ceeb yog tswj kev sib txawv ntawm chav tsev los ntawm cov qauv muaj zog, kev siv cuab yeej, thiab cov txheej txheem kev coj ua zoo tshaj plaws. Xav paub ntau ntxiv hu rau pebtech@huan-tai.org.

Jain, PL (2009). Cov ntsiab cai ntawm foundry technology. New Delhi: Tata McGraw-Hill Education.

Jones, S. (2002). Ua ntej hauv plhaub molding cov ntaub ntawv thiab cov txheej txheem. Kev ua lag luam ntawm lub koom haum Marine Engineers, 114(2), 77-83.

Kalpakjian, S. & Schmid, SR (2014). Manufacturing engineering thiab technology. Upper Saddle River, NJ: Pearson.

Liu, J., Hu, B., Dong, Q., & Cai, Z. (2004). Multi-cavity tuag casting ntawm magnesium alloy AZ91D-Tsoomfwv simulation thiab kuaj xyuas. Phau ntawv Journal of Materials Processing Technology, 146(2), 215-221.

Stefanescu, DM (2015). Khoos phis tawj simulation ntawm kev tsim khoom. Hauv ASM Phau Ntawv Qhia (Vol. 22, pp. 353-367). ASM International.
