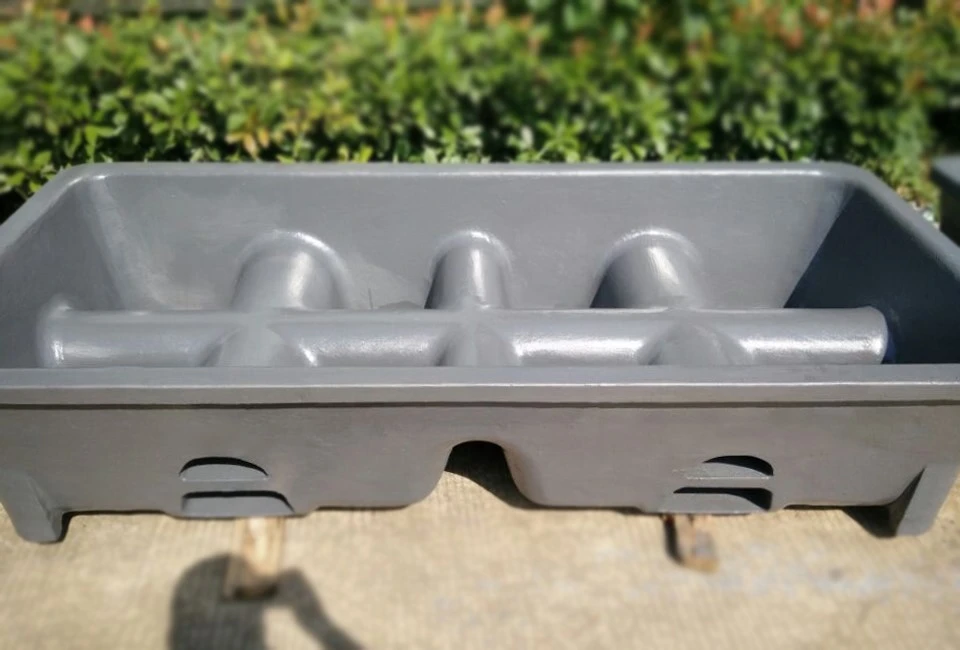

Tus tsim ntawm lub sow pwm nrog ntau chavcoj mus rau hauv tus account qhov optimization ntawm cov dej ntws ntawm txhuas, thiaj li yuav xyuas kom meej uniformity thaum lub sij hawm filling thiab txias, thiab tsim high-zoo txhuas blocks. Thiab txhua lub chamber muaj qhov chaw pub noj thiab tso tawm, uas txo cov txhuas dej txias lub sijhawm thaum ua haujlwm zoo, thiab cov pwm tuaj yeem nrog ntau lub chamber tuaj yeem ua cov txheej txheem ntau yam txhuas dej thaiv, txo lub sijhawm tsim khoom thiab kev xav tau ntawm tib neeg, uas ua rau muaj txiaj ntsig zoo rau kev lag luam. mus rau lub foundry. Tom ntej no, peb yuav tham txog qhov zoo ntawm sow pwm nrog ntau chav.
Yuav ua li cas cog moulds nrog ntau chav ua haujlwm?
Multi-cavity sow pwm yog ib hom pwm tshwj xeeb uas muaj ob lossis ntau qhov pwm impressions nyob rau hauv lub cope thiab luag. Ntawm no yog ib qho kev tawg ntawm yuav ua li cas aSow Pwm Nrog Ntau Chambersua haujlwm:
Ntau Mould Impressions:Dissimilar rau ib leeg-qhov pwm, uas tsim ib qhov projecting ib tug zoo, ib tug ntau kab noj hniav sow pwm muaj ib tug ob peb zoo impressions tsim nyob rau hauv ib tug tshwj xeeb tsim. Qhov kev tsim qauv no txhawb kev sib cais ntawm cov kab noj hniav, suav nrog kev siv chav zoo thiab txwv qhov loj ntawm pwm.
Uniform Feeding System:Txhawm rau kom ntseeg tau tias cov hlau ntws zoo ib yam mus rau txhua qhov kab noj hniav, ib qho sprue thiab lub tshuab khiav yog siv los pub tag nrho cov kab noj hniav hauv pwm. Lub sprue sau nyob rau hauv raws li lub hauv paus ntsiab lus ntawm cov kua hlau nkag mus rau hauv pwm, thaum lub sprinters tsim nyog cov hlau rau txhua tus neeg kab noj hniav.
Kev faib tawm ntawm Hlau:Ingates, uas yog qhov qhib me me ua rau hauv txhua qhov kab noj hniav, tau muab tso rau hauv kev faib cov hlau molten sib npaug thoob plaws txhua qhov kev xav pwm. Qhov no ua kom ntseeg tau tias txhua qhov kab noj hniav tau sau sib npaug, ua rau muaj qhov zoo sib xws.
Kev tso cua kom raug:Txaus siab qhov cua yog qhov tseem ceeb hauv cov pwm pwm nrog ntau lub chamber kom tso cai rau cov pa roj kom dim ntawm txhua qhov chaw ntawm pwm. Tsim kom raug vents pab tiv thaiv qhov tsis xws luag xws li roj porosity thiab xyuas kom zoo ntawm cov castings.
Efficiency Extraction:Thaum cov hlau tau teeb tsa thiab qhov projecting tiav lawm, cov castings yog extricated los ntawm pwm. Hauv qee qhov kev ua haujlwm ntau lawm, cov txheej txheem no yog automated, siv cov tshuab lossis cov neeg hlau kom tshem tawm cov castings ntawm pwm zoo.
Los ntawm kev siv cov noob pwm nrog ntau lub chamber, cov tuam ntxhab tuaj yeem ua kom muaj txiaj ntsig zoo los ntawm kev tsim ntau yam zoo hauv ib lub voj voog casting. Kev siv cov txheej txheem pub mis tsis tu ncua, kev faib cov hlau kom zoo, thiab kev ua pa zoo ua kom zoo zoo ib yam ntawm txhua qhov kab noj hniav.
Yam khoom tsim tau txiaj ntsig dab tsi ua Multi-Cavity Moulds muab?
Qhov txiaj ntsig tseem ceeb ntawm kev siv cov pwm kab noj hniav ntau yog qhov nqa tau zoo heev hauv kev ua tau zoo thiab tshwm sim txawv ntawm kev cuam tshuam rau ib kab noj hniav pwm. Ntawm no yog qhov tseem ceeb productivity zoo ntawmSow Pwm Nrog Ntau Chambers:
Cov zis ntau ntxiv:Multi-cavity pwm xav txog qhov concurrent creation ntawm ntau yam castings nyob rau hauv ib lub pwm, prompting ib tug tseem ceeb expansion nyob rau hauv yield. Piv txwv li, ib qho 4-kab kab noj hniav tuaj yeem tsim tau plaub zaug tus lej ntawm cov pwm ua ib kab noj hniav hauv ib lub sij hawm tuav thiab ua haujlwm zoo sib xws.
Txo Moulding Sijhawm:Nrog ntau cov kab noj hniav tau sau ib txhij, lub sij hawm trim dav dav rau ib qhov projecting yog txo nyob rau hauv ntau kab noj hniav pwm. Qhov kev txhim kho kev ua tau zoo no ua rau lub sijhawm ua haujlwm nrawm dua thiab txhim kho kev tsim khoom.
Optimized Melting Rauv Lub Sijhawm:Multi-cavity pwm pab txo lub sij hawm yuav tsum tau rau melting hlau nyob rau hauv lub cub tawg rau ib daim uas tsim. Lub peev xwm los nrum ntau qhov chaw hauv ib lub voj voog ua rau muaj txiaj ntsig zoo ntawm kev siv cov khoom siv yaj thiab cov khoom siv hluav taws xob.
Kev Ua Haujlwm Tsis Txaus Siab:Los ntawm kev tsim ntau yam castings nyob rau hauv ib qho pwm, ntau kab noj hniav pwm txo tus nqi ntawm kev ua haujlwm tiav rau ib feem. Qhov no ua rau kev txuag nyiaj hauv cov nqi zog thiab ua kom yooj yim rau cov txheej txheem tom qab casting.
Accelerated Pattern Tus Nqi Amortization:Cov khoom ntim ntau dua tuaj yeem ua tiav nrog ntau cov kab noj hniav tuaj yeem tso cai rau kev tshem tawm sai ntawm cov qauv nqi ntau dua ntawm cov castings. Qhov txiaj ntsig zoo ntawm cov txiaj ntsig no txhim kho tag nrho cov txiaj ntsig ntawm kev ua haujlwm casting.
Muaj peev xwm ntau lawm:Multi-cavity pwm yog tsim nyog rau high-volume creation xwm txheej uas ceev ceev yog qhov tseem ceeb. Lub peev xwm ua tau zoo tsim ntau yam zoo castings nyob rau hauv ntau lub sij hawm txwv empowers makers kom txaus siab xav tau productively thiab tiag tiag.
Hauv cov ntsiab lus, kev siv ntau cov kab noj hniav tuaj yeem muab cov txiaj ntsig zoo, suav nrog kev tsim tawm ntau ntxiv, txo lub sijhawm molding, kev siv lub tshuab ua kom zoo dua qub, txo cov neeg ua haujlwm tiav, ua kom cov nqi rov qab sai dua, thiab txhim kho kev muaj peev xwm ntau lawm. Cov txiaj ntsig zoo no ua rau ntau cov kab noj hniav pwm yog cov khoom muaj txiaj ntsig zoo rau kev txhim kho kev ua tau zoo thiab kev sib tw hauv kev ua haujlwm casting.
Dab tsi yog qhov tseem ceeb tsim kev txiav txim siab rau Sow Moulds nrog Ntau Chambers?
Kev ua tiav ntawm kev cog qoob loo nrog ntau lub chamber vam khom rau kev tsim cov kev xav tau zoo los ua kom lawv qhov zoo tshaj plaws. Nov yog cov phiaj xwm tseem ceeb uas yuav tsum tau xav txog:
Balanced Flow Paths thiab Ingate Sizing:Nws yog ib qho tseem ceeb los tsim kom muaj kev sib npaug ntawm cov dej ntws thiab cov khoom siv kom zoo los tiv thaiv kom tsis txhob muaj cov hlau molten nyob rau hauv cov kab noj hniav. Qhov no ua kom muaj kev sib sau ua ke ntawm txhua qhov kev xav thiab tiv thaiv qhov tsis xws li kev ua tsis tiav castings.
Tsim nyog Vents rau Gases:Kev npaj venting kom zoo yuav tsum tau muab tso ua ke los pab txhawb kev khiav tawm ntawm cov pa roj los ntawm txhua qhov kev xav. Kev ua kom muaj cua nkag hav zoov ua rau cov pa roj ntsig txog absconds, zoo li porosity, thiab lav qhov kev ntseeg siab ntawm cov castings hauv txhua qhov kab noj hniav.
Strategic Placement of Risers thiab Chillers:Risers thiab chillers yuav tsum tau muab tso rau hauv lub tswv yim kom zoo noj tag nrho cov kab noj hniav, txhawb kev ruaj khov zoo ib yam thiab txo qhov muaj feem cuam tshuam txog qhov tsis xws luag. Qhov no ua kom zoo ib yam txias thiab solidification thoob plaws txhua qhov kev xav pwm.
Txhim kho Rigidity:Multi-cavity pwm yuav tsum tau npaj nrog nthuav inflexibility los tiv thaiv cov strain thov los ntawm cov kua hlau ntawm txawv fronts. Qhov kev cia siab hauv qab no yog qhov tseem ceeb rau kev ua raws li kev hwm ntawm cov pwm thaum lub sijhawm ua haujlwm.
Accounting rau Higher Shrinkage Strains:Txoj kev npaj yuav tsum sawv cev ntau dua shrinkage hom tuaj txog vim muaj ntau qhov teeb meem hauv cov pwm. Los ntawm kev coj mus rau hauv tus account cov kev hloov pauv no, kev twv txiaj ntawm kev sib tw ntawm kev sib tw ntawm absconds, xws li so lossis twisting, tuaj yeem txo qis.
Standardized Impressions rau Kev Ua Zoo Zoo:Standardizing cov impressions thoob plaws tag nrho cov kab noj hniav kom zoo ib yam nyob rau hauv qhov zoo ntawm cov castings. Qhov no suav nrog kev tswj xyuas qhov ntev, qhov ua kom tiav, thiab lwm yam tseem ceeb.
Clean Parting Lines rau Pwm Sib cais:Tsim cov kab sib cais yooj yim ua kom huv si sib cais ntawm cov pwm halves thaum lub sij hawm rho tawm ntawm cov castings. Qhov no simplifies tus txheej txheem demolding thiab pab txhawb rau tag nrho cov efficiency.
Kev xav zoo thiab kev tsim qauv yog qhov tseem ceeb los xyuas kom meej tias cov khoom siv suab nrov thoob plaws txhua qhov kab noj hniav tsis muaj qhov tsis xws luag. Kev siv cov cuab yeej simulation siab heev thiab cov qauv tsim qauv tuaj yeem pab txhim kho qhov kev teeb tsa thiab teeb tsaSow Pwm Nrog Ntau Chambers, thaum kawg pab txhawb rau lawv txoj kev ua tiav thiab kev ua tau zoo.
Dab tsi yog qhov txwv ntawm Sow Pwm nrog Ntau Chambers?
Thaum cov pwm ntau kab noj hniav muab cov txiaj ntsig tseem ceeb, lawv kuj tseem nrog cov kev cuam tshuam tshwj xeeb uas yuav tsum tau xav txog:
Nce Complexity hauv Tsim:Ib qho kev txwv ntawm ntau cov kab noj hniav tuaj pwm yog qhov kev txhawb nqa intricacy hauv kev npaj rooj tog, qhov cua, thiab kev saib xyuas cov txheej txheem rau ntau cov kab noj hniav. Ua kom cov hlau tsis sib xws thiab ua kom muaj zog thoob plaws txhua qhov kab noj hniav yuav tsum tau ua tib zoo engineering thiab ua tib zoo xav txog kev tsim qauv.
Tus nqi siab dua:Piv txwv tias ib ntu ntawm cov pwm tsis muaj puv lossis tshaib plab thaum lub sijhawm ua haujlwm, nws tuaj yeem ua rau muaj qhov tsis zoo ntawm cov khoom tsim. Ua kom muaj kev txhim khu kev qha filling thiab hardening nyob rau hauv tag nrho cov pits yog ib qho tseem ceeb kom nyob deb ntawm imperfections xws li shrinkage, porosity, los yog deficiency castings.
Tus nqi ntawm cov cuab yeej loj:Kev tsim ntau cov kab noj hniav pwm tsis tu ncua suav nrog cov cuab yeej loj thiab pwm, uas tuaj yeem ua rau cov nqi sib dhos ntau dua qhov sib txawv nrog cov pwm ib leeg. Qhov kev txaus siab hauv cov cuab yeej thiab cov cuab yeej yuav yog qhov tseem ceeb, cuam tshuam rau kev siv nyiaj ntau ntawm kev tsim.
Qhov nyuaj hauv kev tsim ntau yam Castings:Multi-cavity pwm tuaj yeem ntsib cov teeb meem hauv kev tsim cov pwm sib txawv hauv txhua qhov kab noj hniav ib txhij. Cov kev txwv tsim thiab cov kev cai rau kev sib koom ua ke thoob plaws txhua qhov kab noj hniav tuaj yeem txwv qhov yooj yim los tsim ntau qhov chaw hauv tib lub pwm.
Muaj peev xwm rau Thermal Imbalances:Cov yam ntxwv sov tsis xwm yeem nyob rau hauv ntau kab noj hniav tuaj yeem ua rau qhov txias txias thiab ua kom tawv nqaij ntawm cov kua hlau, ua rau lub nra ntawm sab hauv thiab txheej txheej yuam kev hauv cov castings. Kev saib xyuas cov ntsiab lus sov thoob plaws ntau ntu nthuav qhia qhov kev sim tseem ceeb.
Qhov loj thiab qhov hnyav txwv:Multi-cavity sow pwm tuaj yeem muaj kev txwv ntawm qhov loj thiab qhov hnyav ntawm qhov tsis txaus ntseeg uas tuaj yeem ua tau zoo. Cov khoom loj, tsis sib xws yuav ua rau muaj kev sib tw ntawm cov pwm tsim, cov khoom ntws, thiab cov qauv kev ncaj ncees thoob plaws ntau cov kab noj hniav.
Tswj Cov Khoom Siv Hlau:Kev lees paub cov khoom siv hlau ruaj khov, zoo li qhov kub thiab txias, lub koom haum, thiab cov khoom siv kho tshuab zoo, thoob plaws txhua ntu ntawm ntau kab noj hniav tuaj yeem sib tw. Ntau yam hauv cov khoom siv hlau tuaj yeem cuam tshuam qhov zoo thiab ua tiav ntawm cov castings.
Kev daws cov kev txwv no yuav tsum tau siv zog ntxiv engineering, kev tswj xyuas cov txheej txheem kom zoo, thiab ua tib zoo xav txog cov kev xav tau ntau lawm thiab cov qauv tsim. Kev ntsuam xyuas qhov ua tau thiab qhov ua tau zoo ntawm kev siv cov kab noj hniav ntau cov kab noj hniav yog qhov tseem ceeb los ua kom lawv cov txiaj ntsig zoo tshaj plaws thaum txo cov teeb meem thiab kev txwv.
Xaus
Rau nruab nrab mus rau siab ntau lawm,Sow Pwm Nrog Ntau Chambersboost productivity thiab efficiency loj heev. Txawm li cas los xij, cov neeg tsim qauv yuav tsum suav rau qhov nyuaj ntawm kev ntsuas ntau qhov kev xav thiab txo qis qhov tsis xws luag los ntawm kev simulation thiab nruj. Thaum ua tiav tiav, ntau cov kab noj hniav pwm ua rau muaj txiaj ntsig zoo rau cov chaw tsim khoom txhawm rau nce cov khoom tsim tawm thaum txo nqi. Yog tias xav paub ntau ntxiv txog peb cov pwm sow, tiv tauj peb ntawmtech@hua-org.
Cov ntaub ntawv:
Beeley, P. (2001). Foundry technology. Oxford, Boston: Butterworth-Heinemann.
Brown, JR (2000). Foseco ferrous foundryman phau ntawv. Oxford, Boston: Butterworth-Heinemann.
Jain, PL (2009). Cov ntsiab cai ntawm foundry technology. New Delhi: Tata McGraw-Hill Education.
Jones, S. (2002). Ua ntej hauv plhaub molding cov ntaub ntawv thiab cov txheej txheem. Kev ua lag luam ntawm lub koom haum Marine Engineers, 114(2), 77-83.
Kalpakjian, S. & Schmid, SR (2014). Manufacturing engineering thiab technology. Upper Saddle River, NJ: Pearson.
